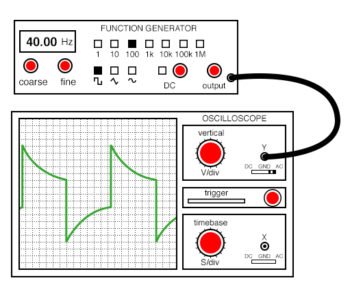

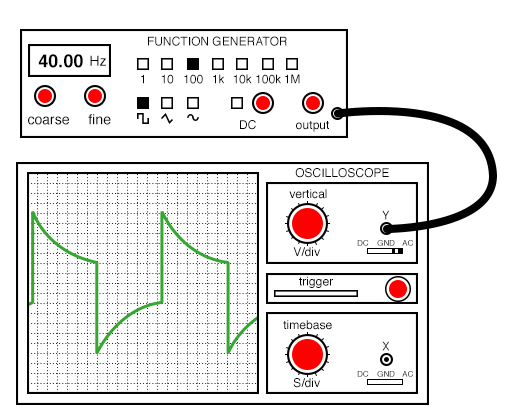

Low frequency: With AC coupling, the high-pass filtering of the coupling capacitor distorts the square wave’s shape so that what is seen is not an accurate representation of the real signal.

Advertisement

high pass filtering of the coupling capacitor distorts the square wave
