Porton Man Robot To Test the Armed Forces’ Chemical And Biological Suits

Porton Man is able to run, march and mimic


Advertisement





Robots were initially developed for industrial, automation and control purposes but recently research is being done to use them as soldiers. Robots are also now being developed to test and analyze the chemical and biological armed forces’ outfits. One such  dummy robot named as Porton Man can act like a real soldier. It has the capability of walking, running and marching. These dummy robots will help the armed forces in saving the lives of their soldiers.

The porton man has been developed for DSTL (Defense Science and Technology Laboratory) at Porton Down, Wiltshire. The UK Armed Forces’ uniforms are tested in this lab by a company named i-body Technology Ltd. The tests are carried out against chemical and biological warfare. Testing on dummy robots is not a new thing. However, the novelty of this approach is the freedom of body parts movements while being fully equipped with sensors which makes the real time data from the robot worth examining

mannequin robots

Robots being used to Test the Armed Forces’ Suits

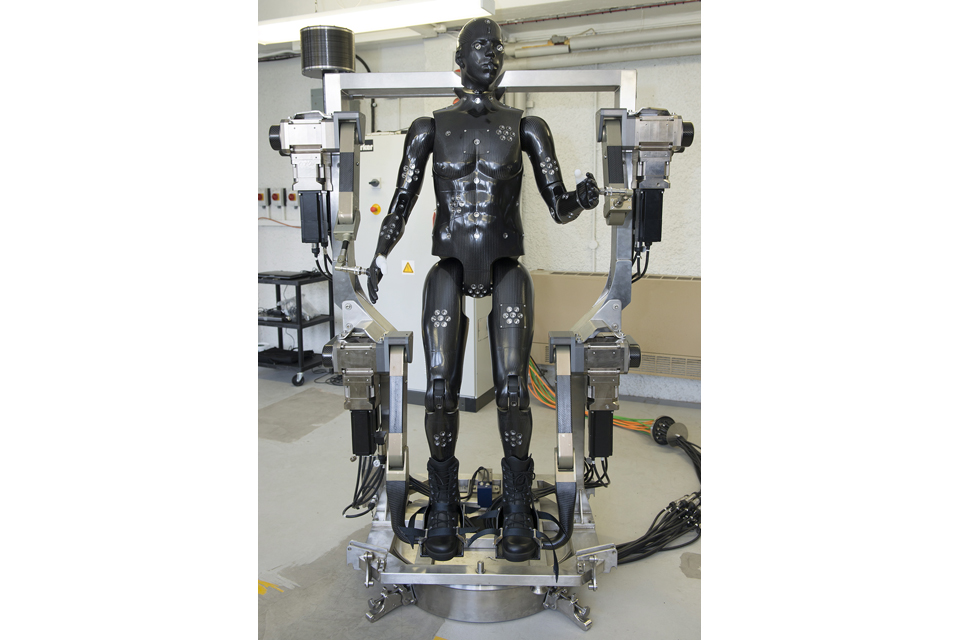

Porton Man is able to run, march and mimic

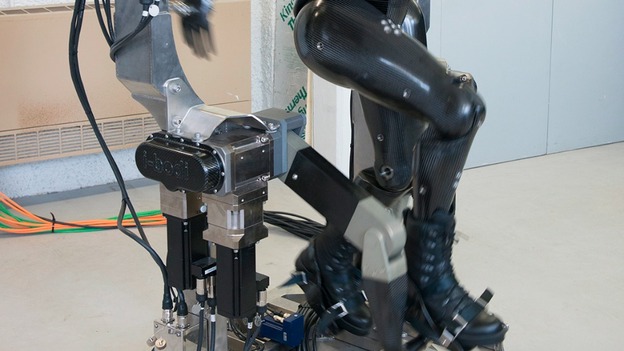

Porton Man can march, walk and even run.

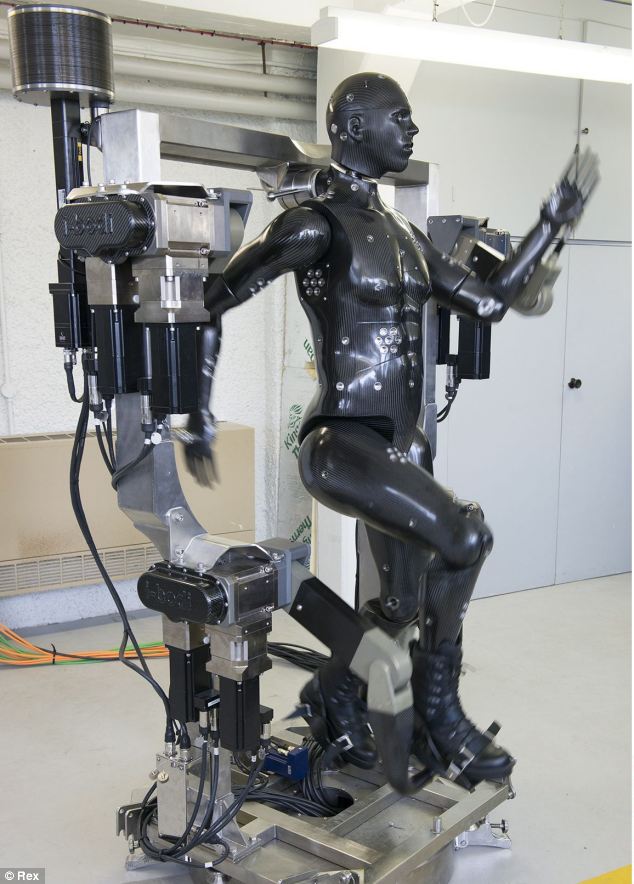

Running Porton Man

Running Porton Man

Free Movement of Head

Porton Man has large freedom of Head Movement

Earlier in the 90’s the dummy models were used to test the CBR (Chemical, Biological and Radiological) suits. The CBR outfits are being used by the armed forces nowadays. Researchers are now trying to improve these suits further. Jaime Cummins of DSTL says that the current model of Porton Man is far better than the older dummies in many ways because of light weight, easy movement and its scalability. The new Porton Man weighs only 14Kg rather than 80kg. Removable thumbs make it easy to wear and remove the gloves. While the movable head makes it easier to understand the effect of these movements on the suit. The testing under windy conditions is done by making the robot sit on a turntable and rotating the turntable to simulate the effect of changing winds coming from fans. This prototyping will give us the sense of a real battlefield situation.

Advertisement

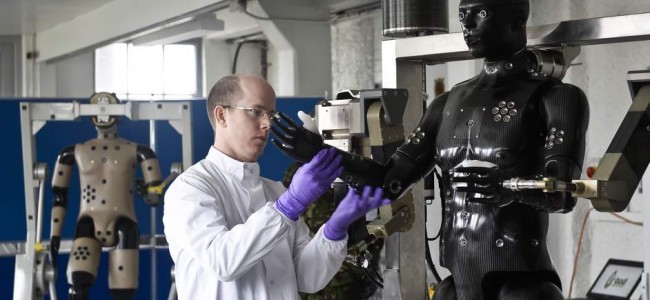

Porton Man: a dummy robot to test soldiers' suits

Cost of Porton Man is 6000,000 and weighs only 14Kg

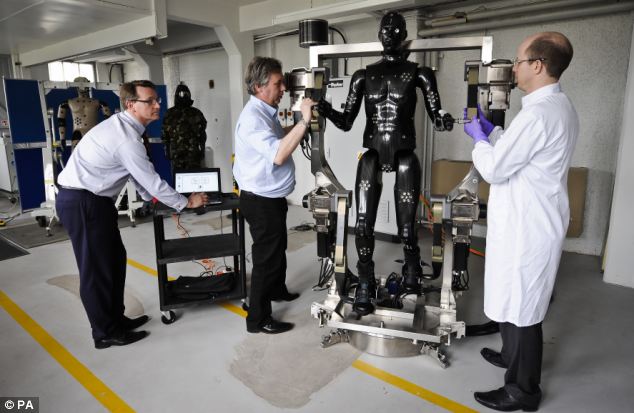

Porton Man being tested

Porton Man is Developed by i-Body Technology to test against Chemical and Biological Attacks

The cost of Porton man is 600,000 Pounds. The i-body technology chief executive says that it was a tough task to produce a light weight mannequin. This dummy is based on the data collected from 2500 soldiers.
